SAM MECH PRODUCT DESIGN SAMPLES
- Engine Lifter
- Suspension Lifter
- Roller and Skid Conveyors
- Valve Rack & HFO Unit
- Traction Bed
- ADT Dashboard
- Wood Shaving Machine
- Reel Mower
- SAMY Laser Diamond Cutter
- Automated Polishing Machine
- Doctor Rewinder
- 2D Wire Bending Machine
- Vehicle Drier
- Dove Tailer
- Collating and Packaging Machine

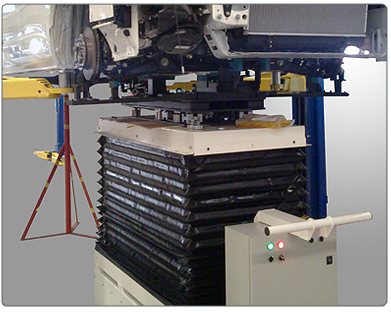

Engine Lifter
We have experience in the design, manufacture, installation and commissioning of engine lifters for use in the automotive motor manufacturing industry. The engine lifter raises the engine from underneath while the vehicle is suspended.
This unit features a 2 ton lifting capacity. Different height set points and a hydraulically driven base. The unit is PLC controlled to interlock different actions with the operation of the production line.
Please contact info@samkzn.co.za for detailed information and pricing.

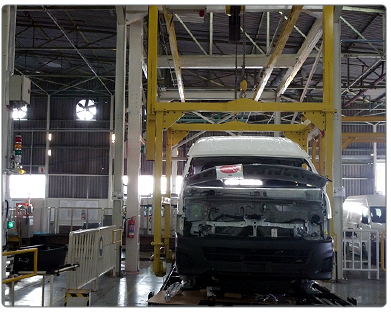

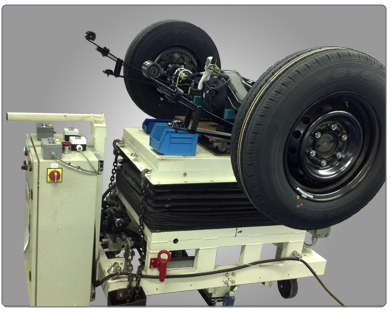

Suspension Lifter
We have experience in the design, manufacture, installation and commissioning of suspension lifters for use in the automotive motor manufacturing industry. This unit features a 2 ton lifting capacity. Different height set points and a hydraulically driven base. The unit is PLC controlled to interlock different actions with the operation of the production line.
Please contact info@samkzn.co.za for detailed information and pricing.

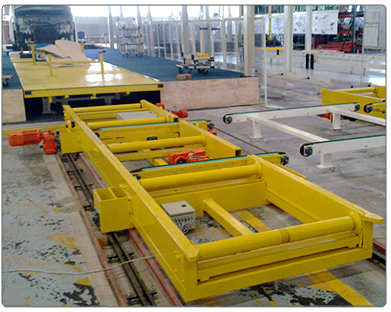

Roller/Skid Conveyors, Transfer Units & Cross Travelers
SAM design, manufacture and commission automotive production equipment and have over ten years experience in this field. We design and manufacture the mechanical equipment, automate the equipment and integrate the equipment with the control system. Providing a One Stop complete turnkey production fascilty We supply complete Andon systems, Poke Yoke, Jidoka and line control systems.
Please contact info@samkzn.co.za for detailed information and pricing.

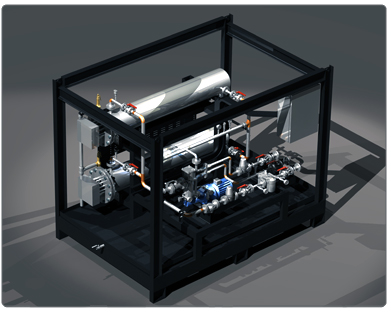

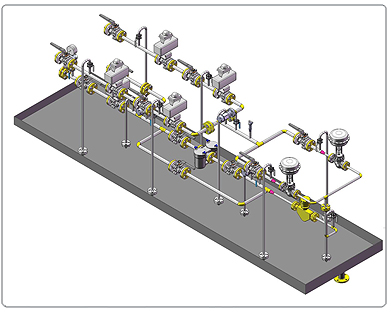

Valve Rack & HFO Unit
SAM Mech have experience in P&ID and piping ISO, piping design and layout experience ranging from skid units to large plant layout. Utilizing a P&ID we can generate and accurate 3d model for verification of layouts and pipe fitting.
Please contact info@samkzn.co.za for detailed information and pricing.

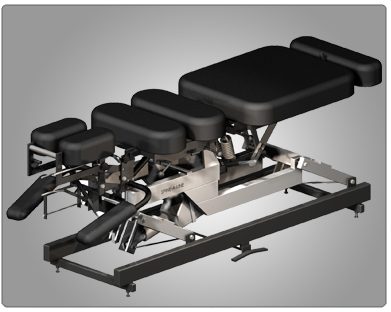

Traction Bed
This model shows how we can present and design complex assemblies and then render to submit for presentation, this customer required a rendered model for presentation before the prototype unit had been completed.
Please contact info@samkzn.co.za for detailed information and pricing.

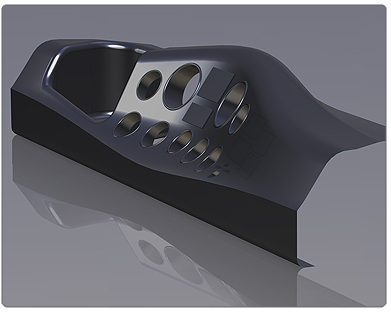

ADT Dashboard
This shows the ability to generate complex 3D surfaces, the geometry extracted from our model is then used for cnc machining.
Please contact info@samkzn.co.za for detailed information and pricing.

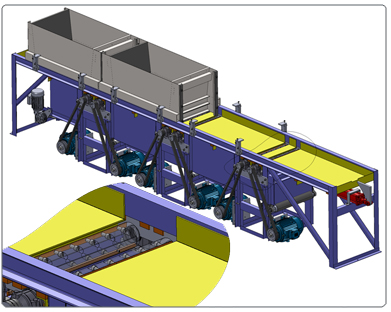

Wood Shaving Machine
Large wood shaving machine designed for mass production of shavings, fully automated cutting cycle increased volume and reduced labor.
Please contact info@samkzn.co.za for detailed information and pricing.

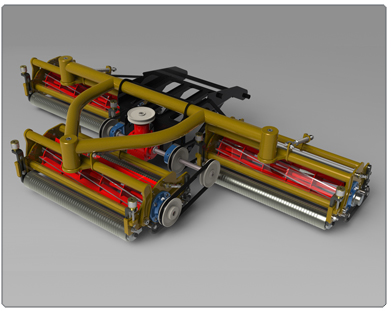

Reel Mower
This model shows how we can present and design complex assemblies and then render to submit for presentation, this customer required a rendered model for presentation before the prototype unit had been completed.
Please contact info@samkzn.co.za for detailed information and pricing.
